GSK RB03A1 Industrial GSK Robot Arm Six Axis Robotic Manipulator Arm

Fangyu(shanghai)Automation Technology Co.,Ltd
Contact Now

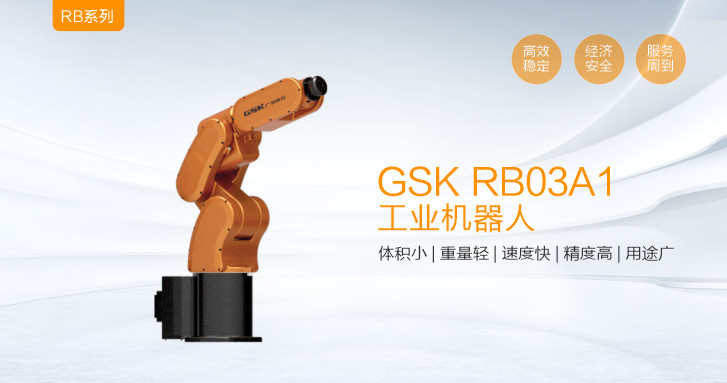

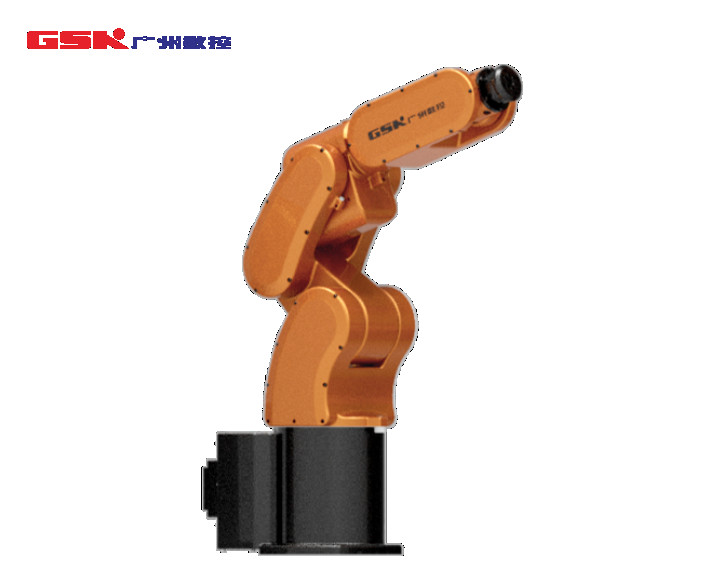

GSK RB03A1 Industrial GSK Robot Arm Six Axis Robotic Manipulator Arm

  • 1
  • 2

Brand Name : FANGYU

Model Number : GSK

Place of Origin : China

MOQ : 1 unit

Price : Price negotiable

Payment Terms : TT

Supply Ability : goods in stock

Delivery Time : 7-10 days

Applicable Industries : Hotels, Building Material Shops, Machinery Repair Shops

Showroom Location : Egypt, Canada, Turkey, United States, Italy, Germany, Viet N

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC

Condition : New

Warranty : 1 Year

Advantages : fast and efficient

Axis : 6

Application : industrial machine

Contact Now

  • The RB03A1 is equipped with a range of advanced features and technologies, including a high-precision spindle, a rigid bed structure, and a powerful servo motor system. It has a worktable size of 650mm x 240mm and a maximum travel distance of 300mm in the X-axis, 150mm in the Y-axis, and 200mm in the Z-axis.
  • The machine is controlled by a computer system and can be programmed to perform a variety of operations, including milling, drilling, and tapping. It features a user-friendly interface and is easy to operate, even for operators with limited experience.
GSK RB03A1 Industrial GSK Robot Arm Six Axis Robotic Manipulator ArmGSK RB03A1 Industrial GSK Robot Arm Six Axis Robotic Manipulator Arm

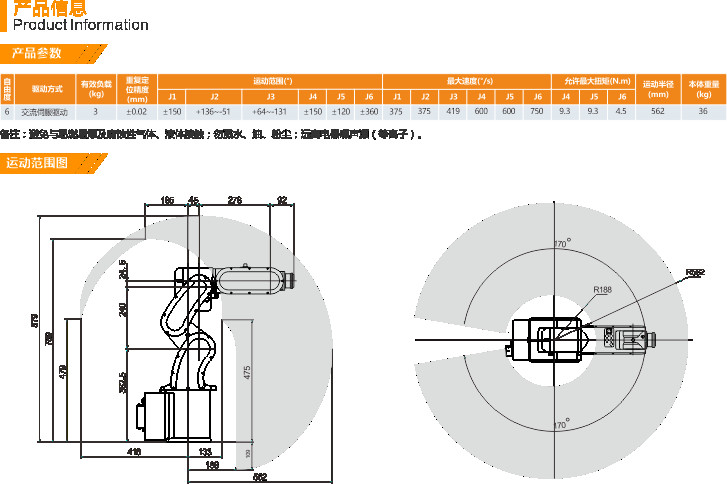

Type     RB03A1

DOF     6
Drive Method     AC Servo Drive
Payload (kg)   3
Repeatability (mm)   ±0.02
Motion Range(°)   J1 ±150
    J2 +136~-51
    J3 +64~-131
    J4 ±150
    J5 ±120
    J6 ±360
Top Velocity(°/s)   J1 375
    J2 375
    J3 419
    J4 600
    J5 600
    J6 750
Allowed Top Torque (N.m) J4 9.3
    J5 9.3
    J6 4.5
Motion Radius (mm) 562
Machine Weight (kg) 36



GSK RB03A1 Industrial GSK Robot Arm Six Axis Robotic Manipulator ArmGSK RB03A1 Industrial GSK Robot Arm Six Axis Robotic Manipulator Arm
